ZIMMERMANN 470.2426.20 (470242620) Brake Disc

ZIMMERMANN part 470.2426.20 (470242620) Brake Disc

ZIMMERMANN 470.2426.20 (470242620) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 470.2426.20 (470242620)

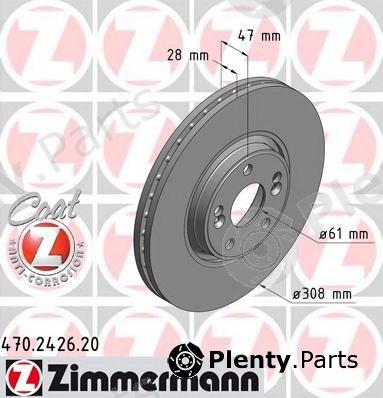

Сharacteristics:
  • Brake Disc Type: Externally Vented
  • Surface: Coated
  • Machining: High-carbon
  • Outer diameter [mm]: 308
  • Thickness [mm]: 28
  • Minimum thickness [mm]: 25,4
  • Height [mm]: 47
  • Hole Arrangement / Number: 7/5
  • Weight [kg]: 10
  • Bolt Hole Circle Ø 1 [mm]: 108
  • Bolt Hole Circle Ø 2 [mm]: 105
  • Hub Bore Ø [mm]: 61

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)470.2426.20 (470242620)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for RENAULT vehicles

OE manufacturerOEM reference numbers
RENAULT7701207378, 8200242317, 8200570677

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 470.2426.20 (470242620) Brake Disc offered by ABE, A.B.S., ACDelco, ALANKO, AP, ATE, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CAR, CIFAM, COMLINE, DELPHI, DENCKERMANN, DJ AUTO, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HELLA, HELLA PAGID, ICER, JURID, KAMOKA, KAWE, LPR, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, REMSA, ROADHOUSE, SASIC, sbs, SWAG, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3R033ABE
A.B.S.17158, 17158OE
ACDelcoAC3216D
ALANKO304231, 305442
AP24974V, 24974
ATE24.0128-0135.1
BENDIX562593BC
BORG & BECKBBD5929S
BOSCH0986479199
Brake ENGINEERINGDI956621S
BRECOBV8593, BS8593
BREMBO09.9821.21, 09.9821.20
CAR142.044
CIFAM800-673C
COMLINEADC1576V
DELPHIBG9016
DENCKERMANNB130379
DJ AUTOBD1320
E.T.F.19-2317
FARCOM230985
FEBI BILSTEIN24310
FERODODDF1368
FOMARFO4008
FREMAXBD-2317
fri.tech.DF976
FTEBS5279
GIRLING6042605
GRAFDF29517
HELLA8DD355115-161
HELLA PAGID8DD355115161
ICER78BD2317C
JURID562593JC
KAMOKA1031018
KAWE669410
LPRR1013V
MAPCO15135
METELLI23-0673C
METZGER22974
MEYLE16-155210025
MINTEXMDC1887
NK313948, 203948
OPEN PARTSBDR1999.20, BDA1999.20
OPTIMALBS-7960
PAGID54740
PEX14.0841N, 14.0841
PILENGAV782
PROTECHNICPRD2684
QUINTON HAZELL58157, BDC5279
REMSA6694.10
ROADHOUSE6694.10
SASIC6104007
sbs1815203948, 1815313948
SWAG60924310
TEXTAR92174003
TRISCAN812025144
TRUSTINGDF976
TRWDF4260S
VALEO186722
WOKINGD6694.10
ZIMMERMANN470.2426.50

Vehicle fitment / ZIMMERMANN 470.2426.20 (470242620) Brake Disc compatibility

This product fits the following models: RENAULT ESPACE IV, RENAULT ESPACEIV, RENAULT LAGUNA II, etc. See all vehicles this product (ZIMMERMANN 470.2426.20 (470242620)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
RENAULTESPACE IV
JK0/1
1.9 dCi
2.0
2.0 dCi
2.0 Turbo
JK01
JK02
JK1J
JK1K
JK02
JK03
JK03
JK04
JK09
JK0A
JK0B
JK0N
JK0A
JK1D
JK0N
JK0K
JK0U
JK0U
JK0G
2002/11 - F4R790 133 hp 98 kW 2 L Petrol
F4R792 136 hp 100 kW 2 L Petrol
F4R794 163 hp 120 kW 2 L Petrol
F4R795 163 hp 120 kW 2 L Petrol
F4R796 163 hp 120 kW 2 L Petrol
F4R797 163 hp 120 kW 2 L Petrol
F4R796 170 hp 125 kW 2 L Petrol
F4R797 170 hp 125 kW 2 L Petrol
F4R896 170 hp 125 kW 2 L Petrol
F4R897 170 hp 125 kW 2 L Petrol
F9Q680 120 hp 88 kW 1.9 L Diesel
F9Q820 120 hp 88 kW 1.9 L Diesel
F9Q826 120 hp 88 kW 1.9 L Diesel
F9Q820 116 hp 85 kW 1.9 L Diesel
M9R740 131 hp 96 kW 2 L Diesel
M9R750 131 hp 96 kW 2 L Diesel
M9R760 131 hp 96 kW 2 L Diesel
M9R761 131 hp 96 kW 2 L Diesel
M9R762 131 hp 96 kW 2 L Diesel
M9R763 131 hp 96 kW 2 L Diesel
M9R740 150 hp 110 kW 2 L Diesel
M9R750 150 hp 110 kW 2 L Diesel
M9R815 150 hp 110 kW 2 L Diesel
M9R760 173 hp 127 kW 2 L Diesel
M9R761 173 hp 127 kW 2 L Diesel
M9R762 173 hp 127 kW 2 L Diesel
M9R763 173 hp 127 kW 2 L Diesel
M9R815 173 hp 127 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
RENAULTESPACEIV
JK0/1
1.9 dCi
2.0
2.0 dCi
2.0 Turbo
JK01
JK02
JK1J
JK1K
JK02
JK03
JK03
JK04
JK09
JK0A
JK0B
JK0N
JK0A
JK1D
JK0N
JK0K
JK0U
JK0U
JK0G
2002/11 - F4R790 133 hp 98 kW 2 L Petrol
F4R792 136 hp 100 kW 2 L Petrol
F4R794 163 hp 120 kW 2 L Petrol
F4R795 163 hp 120 kW 2 L Petrol
F4R796 163 hp 120 kW 2 L Petrol
F4R797 163 hp 120 kW 2 L Petrol
F4R796 170 hp 125 kW 2 L Petrol
F4R797 170 hp 125 kW 2 L Petrol
F4R896 170 hp 125 kW 2 L Petrol
F4R897 170 hp 125 kW 2 L Petrol
F9Q680 120 hp 88 kW 1.9 L Diesel
F9Q820 120 hp 88 kW 1.9 L Diesel
F9Q826 120 hp 88 kW 1.9 L Diesel
F9Q820 116 hp 85 kW 1.9 L Diesel
M9R740 131 hp 96 kW 2 L Diesel
M9R750 131 hp 96 kW 2 L Diesel
M9R760 131 hp 96 kW 2 L Diesel
M9R761 131 hp 96 kW 2 L Diesel
M9R762 131 hp 96 kW 2 L Diesel
M9R763 131 hp 96 kW 2 L Diesel
M9R740 150 hp 110 kW 2 L Diesel
M9R750 150 hp 110 kW 2 L Diesel
M9R815 150 hp 110 kW 2 L Diesel
M9R760 173 hp 127 kW 2 L Diesel
M9R761 173 hp 127 kW 2 L Diesel
M9R762 173 hp 127 kW 2 L Diesel
M9R763 173 hp 127 kW 2 L Diesel
M9R815 173 hp 127 kW 2 L Diesel
Front wheel
MPV / Van / Minivan
RENAULTLAGUNA II
BG0/1
KG0/1
3.0 V6 24V
BG01
BG02
BG0D
BG0Y
KG0D
2001/03 - L7X731 207 hp 152 kW 3 L Petrol
Front wheel
Estate / Turnier / Vario / Wagon
Hatchback / Sportback / Sport hatch
