ZIMMERMANN 540249420 Brake Disc

ZIMMERMANN part 540249420 Brake Disc

ZIMMERMANN 540249420 Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 540249420

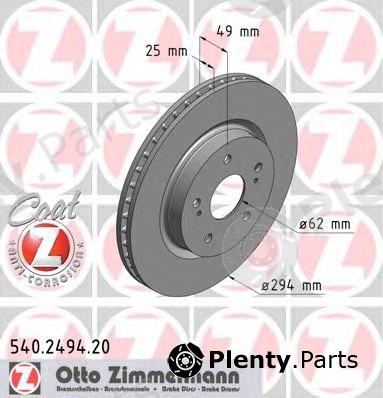

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Surface: Coated
  • Outer diameter [mm]: 294
  • Thickness [mm]: 25
  • Minimum thickness [mm]: 23
  • Height [mm]: 49
  • Hole Arrangement / Number: 7/5
  • Weight [kg]: 6,7
  • Bolt Hole Circle Ø 1 [mm]: 114,3
  • Hub Bore Ø [mm]: 62

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)540249420
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for SUZUKI vehicles

OE manufacturerOEM reference numbers
SUZUKI55211-65J00, 55211-65J01

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 540249420 Brake Disc offered by ABE, A.B.S., ACDelco, AP, ASHIKA, ASHUKI, ATE, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, CAR, CIFAM, COMLINE, DELPHI, E.T.F., FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HELLA, HERTH+BUSS JAKOPARTS, ICER, IPS Parts, JAPANPARTS, JAPKO, JP GROUP, JURID, KAGER, KAISHIN, KAMOKA, KAWE, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NIPPARTS, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PILENGA, PROFIT, QH International, QUINTON HAZELL, REMSA, ROADHOUSE, ROTINGER, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC38019ABE
A.B.S.17704, 17704S
ACDelcoAC3275D
AP25241, 25241V
ASHIKA60-08-821
ASHUKIK01645, 0990-1208
ATE24.0125-0190.1
BENDIX562632BC
BLUE PRINTADK84324
BORG & BECKBBD4607
BOSCH0986478841, 0986479559
Brake ENGINEERINGDI956800
BRECOBS8851, BV8851
BREMBO09A53811, 09.A538.10
CAR142.1289, HPD1289
CIFAM800966C, 800-966
COMLINEADC0923V
DELPHIBG4131
E.T.F.19-0621
FEBI BILSTEIN28442
FENOXTB219205
FERODODDF1635-1
FIRST LINEFBD1679
FOMARFO4095
FREMAXBD-4803
fri.tech.DF1061
FTEBS7154
GIRLING6073715
GRAFDF29966
HELLA8DD355113-621
HERTH+BUSS JAKOPARTSJ3308022
ICER78BD4803
IPS PartsIBT-1888
JAPANPARTSDI-821
JAPKO60821
JP GROUP4763100609
JURID562632JC
KAGER37-1112, 371398
KAISHINCBR347
KAMOKA103129
KAWE6121210
LPRS5004V
MAGNETI MARELLI600000089440
MAPCO45580
METELLI23-0966, 230966C
METZGER6110329, 61212.10
MEYLE33155210007PD, 33-155210007
MINTEXMDC2028
NATIONALNBD1568
NIPPARTSN3308021
NK205216
OPEN PARTSBDR2447.20
OPTIMALBS-8368
PAGID54565
PATRONPBD7371
PILENGAV561
PROFIT50101635
QH InternationalHP58434
QUINTON HAZELLHP58434, V561
REMSA61212.10
ROADHOUSE61212.10
ROTINGERRT20488, RT20488T5
sbs1815205216
SWAG84928442
TEMPLIN0311027050
TEXTAR92156500, 92156503
TRISCAN812069117
TRUSTINGDF1061
TRWDF7371S
WOKINGD61212.10
ZIMMERMANN540.2494.50, 540.2494.52, 540.2494.00

Vehicle fitment / ZIMMERMANN 540249420 Brake Disc compatibility

This product fits the following models: SUZUKI ESCUDO II, SUZUKI GRAND ESCUDO II, SUZUKI GRAND NOMADE II, SUZUKI GRAND VITARA II, SUZUKI GRAND VITARA XL-7 II, etc. See all vehicles this product (ZIMMERMANN 540249420) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
SUZUKIESCUDO II
JT
1.3
1.6
1.9 DDiS
2.0
2.4
3.2

JT424
TA74
TD44
JT419
TD54
2005/04 - F9QB 129 hp 95 kW 1.9 L Diesel
G13BB 80 hp 59 kW 1.3 L Petrol
M13A 83 hp 61 kW 1.3 L Petrol
J20A 140 hp 103 kW 2 L Petrol
J24B 166 hp 122 kW 2.4 L Petrol
J24B 166 hp 122 kW 2.4 L Petrol
J24B 169 hp 124 kW 2.4 L Petrol
M16A 106 hp 78 kW 1.6 L Petrol
M16A 99 hp 73 kW 1.6 L Petrol
M16A 99 hp 73 kW 1.6 L Petrol
N32A 233 hp 171 kW 3.2 L Petrol
AWD / 4WD
Front wheel
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUZUKIGRAND ESCUDO II
JT
1.3
1.6
1.9 DDiS
2.0
2.4
3.2

JT424
TA74
TD44
JT419
TD54
2005/04 - F9QB 129 hp 95 kW 1.9 L Diesel
G13BB 80 hp 59 kW 1.3 L Petrol
M13A 83 hp 61 kW 1.3 L Petrol
J20A 140 hp 103 kW 2 L Petrol
J24B 166 hp 122 kW 2.4 L Petrol
J24B 166 hp 122 kW 2.4 L Petrol
J24B 169 hp 124 kW 2.4 L Petrol
M16A 106 hp 78 kW 1.6 L Petrol
M16A 99 hp 73 kW 1.6 L Petrol
M16A 99 hp 73 kW 1.6 L Petrol
N32A 233 hp 171 kW 3.2 L Petrol
AWD / 4WD
Front wheel
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUZUKIGRAND NOMADE II
JT
1.3
1.6
1.9 DDiS
2.0
2.4
3.2

JT424
TA74
TD44
JT419
TD54
2005/04 - F9QB 129 hp 95 kW 1.9 L Diesel
G13BB 80 hp 59 kW 1.3 L Petrol
M13A 83 hp 61 kW 1.3 L Petrol
J20A 140 hp 103 kW 2 L Petrol
J24B 166 hp 122 kW 2.4 L Petrol
J24B 166 hp 122 kW 2.4 L Petrol
J24B 169 hp 124 kW 2.4 L Petrol
M16A 106 hp 78 kW 1.6 L Petrol
M16A 99 hp 73 kW 1.6 L Petrol
M16A 99 hp 73 kW 1.6 L Petrol
N32A 233 hp 171 kW 3.2 L Petrol
AWD / 4WD
Front wheel
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUZUKIGRAND VITARA II
JT
1.3
1.6
1.9 DDiS
2.0
2.4
3.2

JT424
TA74
TD44
JT419
TD54
2005/04 - F9QB 129 hp 95 kW 1.9 L Diesel
G13BB 80 hp 59 kW 1.3 L Petrol
M13A 83 hp 61 kW 1.3 L Petrol
J20A 140 hp 103 kW 2 L Petrol
J24B 166 hp 122 kW 2.4 L Petrol
J24B 166 hp 122 kW 2.4 L Petrol
J24B 169 hp 124 kW 2.4 L Petrol
M16A 106 hp 78 kW 1.6 L Petrol
M16A 99 hp 73 kW 1.6 L Petrol
M16A 99 hp 73 kW 1.6 L Petrol
N32A 233 hp 171 kW 3.2 L Petrol
AWD / 4WD
Front wheel
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
SUZUKIGRAND VITARA XL-7 II
JT
1.3
1.6
1.9 DDiS
2.0
2.4
3.2

JT424
TA74
TD44
JT419
TD54
2005/04 - F9QB 129 hp 95 kW 1.9 L Diesel
G13BB 80 hp 59 kW 1.3 L Petrol
M13A 83 hp 61 kW 1.3 L Petrol
J20A 140 hp 103 kW 2 L Petrol
J24B 166 hp 122 kW 2.4 L Petrol
J24B 166 hp 122 kW 2.4 L Petrol
J24B 169 hp 124 kW 2.4 L Petrol
M16A 106 hp 78 kW 1.6 L Petrol
M16A 99 hp 73 kW 1.6 L Petrol
M16A 99 hp 73 kW 1.6 L Petrol
N32A 233 hp 171 kW 3.2 L Petrol
AWD / 4WD
Front wheel
Rear wheel
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
