ZIMMERMANN 600.1604.00 (600160400) Brake Disc

ZIMMERMANN part 600.1604.00 (600160400) Brake Disc

ZIMMERMANN 600.1604.00 (600160400) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 600.1604.00 (600160400)

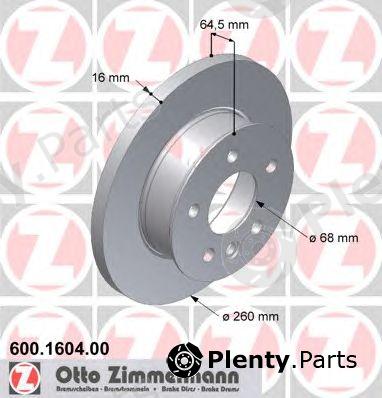

Сharacteristics:
  • Brake Disc Type: Solid
  • Outer diameter [mm]: 260
  • Thickness [mm]: 16
  • Minimum thickness [mm]: 13
  • Height [mm]: 64,5
  • Hole Arrangement / Number: 6/5
  • Weight [kg]: 5,52
  • Bolt Hole Circle Ø 1 [mm]: 112
  • Hub Bore Ø [mm]: 68

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)600.1604.00 (600160400)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VAG vehicles

OE manufacturerOEM reference numbers
VAG701615301C, 701615301

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 600.1604.00 (600160400) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, AUTOMEGA, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CASALS, CIFAM, DELPHI, E.T.F., FARCOM, FEBI BILSTEIN, FENOX, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, HANS PRIES, HELLA, HELLA PAGID, HP, JURID, KAGER, KAMOKA, KAWE, KRAFT, LEMFÖRDER, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NECTO, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PETERS ENNEPETAL, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, STOP, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3W024ABE
A.B.S.16082, 16082S
ACDelcoAC2353D
AP14353
ATE24.0116-0108.1
AUTOMEGA306150301701C
BENDIX561609, 561609BC, 561609B
BORG & BECKBBD4962
BOSCH0986478547
Brake ENGINEERINGDI955171
BRECOBS7427
BREMBO08.5497.10
BREMSIDBA426S
CARHPD731, 142.731
CASALS55434
CIFAM800-293
DELPHIBG3415, BG2716, BG3417
E.T.F.19-3013
FARCOM230850
FEBI BILSTEIN06547
FENOXTB215250
FERODODDF4261, DDF426
FIRST LINEFBD450
FOMARFO2353
FREMAXBD-3013
fri.tech.DF220, BD0220
FTEBS3788B, BS3788
GIRLING6015933
GRAFDF29293
HANS PRIES104086
HELLA8DD355102621
HELLA PAGID8DD355102621
HPHP57415
JURID561609J, 561609JC, 561609
KAGER37-0069
KAMOKA103201
KAWE641400
KRAFT6040190
LEMFÖRDER1441301, 617270034
LPRV2191P
LUCAS ELECTRICALDF1593
MAGNETI MARELLI353615837240, 360406105900, 360406050200
MAPCO15755
MAXGEAR190983
METELLI23-0293
METZGER14353
MEYLE1155211015
MINTEXMDC912
NATIONALNBD306
NECTOWN596
NK204732, 314732
OPEN PARTSBDR1588.10, BDA1588.10
OPTIMALBS-4140
PAGID53919
PATRONPBD1593
PETERS ENNEPETAL766.100-00
PEX14.0628
PILENGA5250
PROTECHNICPRD1136
QUINTON HAZELLHP57415, BDC3788, 55YQ/A
RAMEDERT0620426
REMSA6414.00
ROADHOUSE6414.00
ROTINGERRT1374T5, RT1374
ROULUNDS BRAKINGD2353
SASIC9004586J
sbs1815314732, 1815204732
STOP561609S
SWAG30906547
TEMPLIN0311084720, 01.04.06.108991
TEXTAR92055903, 92055900, 982000559
TRISCAN812029130
TRUSTINGDF220
TRWDF1593
VAICOV10-40023
VEMA98582
VILLAR628.1754
WOKINGD6414.00
ZIMMERMANN600.1604.52, 600.1604.20, 600.1604.50

Vehicle fitment / ZIMMERMANN 600.1604.00 (600160400) Brake Disc compatibility

This product fits the following models: VW EURO CARAVELLE IV, VW EURO IV, VW TRANER CARAVELLEIV, VW TRANER CARAVELLE IV, VW TRANER IV, VW TRANERIV, VW TRANER MULTI IV, VW TRANER T4, etc. See all vehicles this product (ZIMMERMANN 600.1604.00 (600160400)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VWEURO CARAVELLE IV
70XB
70XC
7DB
7DW
7DK
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWEURO IV
70XA
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/07 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
AWD / 4WD
Front wheel
LCV / Van / Cargo
VWTRANER CARAVELLEIV
70XB
70XC
7DB
7DW

1.8
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER CARAVELLE IV
70XB
70XC
7DB
7DW
7D
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER IV
70XA
70XB
70XC
7DB
7DW
7DK
70XD
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/07 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
VWTRANERIV
70XA
70XD
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/07 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
With flatbed/undercarriage
VWTRANER MULTI IV
70XB
70XC
7DB
7DW
7DK
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/09 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
Passenger Van / Wagon / Minibus
VWTRANER T4
70XA
70XB
70XC
7DB
7DW
7DK
70XD
1.8
1.9 D
1.9 TD
2.0
2.4 D
2.4 D Syncro
2.5
2.5 Syncro
1990/07 - 2003/041X 60 hp 44 kW 1.9 L Diesel
1X 61 hp 45 kW 1.9 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AAB 78 hp 57 kW 2.4 L Diesel
AJA 75 hp 55 kW 2.4 L Diesel
AAC 84 hp 62 kW 2 L Petrol
AAF 110 hp 81 kW 2.5 L Petrol
ACU 110 hp 81 kW 2.5 L Petrol
AEN 110 hp 81 kW 2.5 L Petrol
AEU 110 hp 81 kW 2.5 L Petrol
ABL 68 hp 50 kW 1.9 L Diesel
PD 67 hp 49 kW 1.8 L Petrol
AWD / 4WD
Front wheel
LCV / Van / Cargo
Passenger Van / Wagon / Minibus
With flatbed/undercarriage
