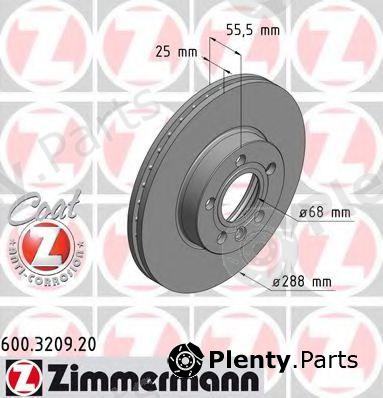

ZIMMERMANN 600.3209.20 (600320920) Brake Disc

ZIMMERMANN part 600.3209.20 (600320920) Brake Disc

ZIMMERMANN 600.3209.20 (600320920) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 600.3209.20 (600320920)

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Surface: Coated
  • Outer diameter [mm]: 288
  • Thickness [mm]: 25
  • Minimum thickness [mm]: 21
  • Height [mm]: 55,5
  • Hole Arrangement / Number: 6/5
  • Weight [kg]: 7,42
  • Bolt Hole Circle Ø 1 [mm]: 112
  • Hub Bore Ø [mm]: 68

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)600.3209.20 (600320920)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for FORD, VAG vehicles

OE manufacturerOEM reference numbers
FORD1001093, 1045994, 1143641, 1526686
VAG7M0615301E, 7M0615301G

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 600.3209.20 (600320920) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, BARUM, BENDIX, BOSCH, BRECO, BREMBO, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FREMAX, fri.tech., FTE, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, JURID, KAGER, KAWE, KÜHLER SCHNEIDER, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROULUNDS BRAKING, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VAICO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3W020ABE
A.B.S.16297S, 16297
ACDelcoAC2250D
AP24628E
ATE24.0125-0114.1
BARUMBAR25114
BENDIX562043B
BOSCH0986478893
BRECOBS8263
BREMBO09.6934.75, 09.6934.14
CARHPD239, 142.239
CIFAM800-403
DELPHI800-403, BG3025
DENCKERMANNB130074
E.T.F.19-1093
FARCOM230872
FEBI BILSTEIN14160
FERODODDF846
FIRST LINEFBD1007
FREMAXBD-1093
fri.tech.DF503
FTEBS4628
GIRLING6027761
GRAFDF29403
G.U.DGDB125114
HANS PRIES107628
HELLA8DD355104481, 8DD355104471
HELLA PAGID8DD355104471, 8DD355104481
JURID562043J, 562043JC
KAGER37-0054
KAWE649610
KÜHLER SCHNEIDER6030491
LEMFÖRDER2451301
LPRF1571V
MAGNETI MARELLI360406049100
MAPCO15828
METELLI23-0403
METZGER24628E, X24628, 6496.10
MEYLE1155211029PD, 1155211029
MINTEXMDC1017, MDK0069
NK202545
OPEN PARTSBDR1676.20, BDA1676.20
OPTIMALBS-4960
PAGID53963PRO, 53963
PEX14.0635, 14.0635N
PILENGAV156
QUINTON HAZELLBDC4628, HP57678
RAMEDERT0620877, T0620631
REMSA6496.10
ROADHOUSE6496.10
ROULUNDS BRAKINGD2250
SASIC9004881J
sbs1815202545
SWAG32914160
TEMPLIN01.11.42.121020
TEXTAR89003800, 89012000, 92074200, 92074203
TRISCAN812010145, 812010145C
TRUSTINGDF503
TRWDF2776
VAICOV10-80067
VEMA98095
VILLAR628.0303
WOKINGD6496.10
ZIMMERMANN600.3209.50, 600.3209.52, 600.3209.00

Vehicle fitment / ZIMMERMANN 600.3209.20 (600320920) Brake Disc compatibility

This product fits the following models: FORD GALAXY, SEAT ALHAMBRA, VW SHARAN, etc. See all vehicles this product (ZIMMERMANN 600.3209.20 (600320920)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
FORDGALAXY
WGR
1.9 TDI
2.0 i
2.3 16V
2.8 i V6
2.8 i V6 4x4
1995/03 - 2006/051Z 90 hp 66 kW 1.9 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AHU 90 hp 66 kW 1.9 L Diesel
ANU 90 hp 66 kW 1.9 L Diesel
ASZ 130 hp 96 kW 1.9 L Diesel
AUY 115 hp 85 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
BTB 150 hp 110 kW 1.9 L Diesel
AAA 174 hp 128 kW 2.8 L Petrol
AMY 174 hp 128 kW 2.8 L Petrol
E5SA 146 hp 107 kW 2.3 L Petrol
E5SB 140 hp 103 kW 2.3 L Petrol
Y5B 146 hp 107 kW 2.3 L Petrol
NSE 116 hp 85 kW 2 L Petrol
ZVSA 116 hp 85 kW 2 L Petrol
AWD / 4WD
Front wheel
MPV / Van / Minivan
SEATALHAMBRA
7V8
7V9
1.8 T 20V
1.9 TDI
1.9 TDI 4motion
1.9 Tdi 4x4
2.0 i
2.0 TDI
2.8 V6
2.8 V6 4motion
1996/04 - 2010/031Z 90 hp 66 kW 1.9 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AHU 90 hp 66 kW 1.9 L Diesel
ANU 90 hp 66 kW 1.9 L Diesel
ASZ 131 hp 96 kW 1.9 L Diesel
AUY 115 hp 85 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
BTB 150 hp 110 kW 1.9 L Diesel
BVK 115 hp 85 kW 1.9 L Diesel
ADY 115 hp 85 kW 2 L Petrol
ATM 115 hp 85 kW 2 L Petrol
AJH 150 hp 110 kW 1.8 L Petrol
AWC 150 hp 110 kW 1.8 L Petrol
ASZ 131 hp 96 kW 1.9 L Diesel
AUE 204 hp 150 kW 2.8 L Petrol
AYL 204 hp 150 kW 2.8 L Petrol
AUY 115 hp 85 kW 1.9 L Diesel
BVK 115 hp 85 kW 1.9 L Diesel
BRT 140 hp 103 kW 2 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
VWSHARAN
7M8
7M9
7M6
1.8 T 20V
1.9 TDI
1.9 TDI 4motion
2.0
2.0 16V
2.0 LPG
2.0 TDI
2.8 V6 24V
2.8 V6 24V 4motion
2.8 VR6
2.8 VR6 Syncro
1995/09 - 2010/03150 hp 110 kW 2 L Petrol
1Z 90 hp 66 kW 1.9 L Diesel
AFN 110 hp 81 kW 1.9 L Diesel
AHU 90 hp 66 kW 1.9 L Diesel
ANU 90 hp 66 kW 1.9 L Diesel
ASZ 130 hp 96 kW 1.9 L Diesel
AUY 115 hp 85 kW 1.9 L Diesel
AVG 110 hp 81 kW 1.9 L Diesel
BTB 150 hp 110 kW 1.9 L Diesel
BVK 115 hp 85 kW 1.9 L Diesel
AAA 174 hp 128 kW 2.8 L Petrol
AMY 174 hp 128 kW 2.8 L Petrol
ADY 115 hp 85 kW 2 L Petrol
ATM 115 hp 85 kW 2 L Petrol
AJH 150 hp 110 kW 1.8 L Petrol
AWC 150 hp 110 kW 1.8 L Petrol
ATM 115 hp 85 kW 2 L Petrol
AUY 115 hp 85 kW 1.9 L Diesel
BVK 115 hp 85 kW 1.9 L Diesel
AYL 204 hp 150 kW 2.8 L Petrol
BRT 140 hp 103 kW 2 L Diesel
BVH 136 hp 100 kW 2 L Diesel
AWD / 4WD
Front wheel
MPV / Van / Minivan
