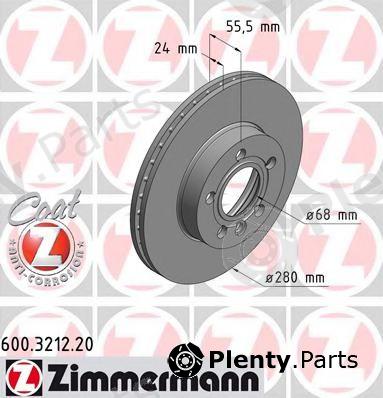

ZIMMERMANN 600.3212.20 (600321220) Brake Disc
ZIMMERMANN 600.3212.20 (600321220) Brake Disc
by ZIMMERMANNManufacturer Part Number: 600.3212.20 (600321220)
- Brake Disc Type: Internally Vented
- Surface: Coated
- Outer diameter [mm]: 280
- Thickness [mm]: 24
- Minimum thickness [mm]: 20
- Height [mm]: 55
- Hole Arrangement / Number: 6/5
- Weight [kg]: 6,7
- Bolt Hole Circle Ø 1 [mm]: 112
- Hub Bore Ø [mm]: 68
Product Details
| Brand | ZIMMERMANN |
| ZIMMERMANN article (MPN) | 600.3212.20 (600321220) |
| Vehicle subsystem | Brake System |
Original (OEM) part numbers
Suitable for VAG vehicles
| OE manufacturer | OEM reference numbers |
|---|---|
| VAG | 701615301F, 7D0615301C, 7D0615301A |
Aftermarket cross reference / interchange guide
The aftermarket competitive interchanges for ZIMMERMANN 600.3212.20 (600321220) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ASHUKI, ATE, AUTOMEGA, BARUM, BENDIX, BORG & BECK, BOSCH, BRECO, BREMBO, BSG, CAR, CASALS, CIFAM, COMLINE, DELPHI, DENCKERMANN, DJ AUTO, E.T.F., EUROBRAKE, FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FLENNOR, FREMAX, fri.tech., FTE, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, ICER, JP GROUP, JURID, KAGER, KAMOKA, KAWE, LEMFÖRDER, LPR, MAGNETI MARELLI, MAPCO, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROULUNDS BRAKING, sbs, SIMER, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, VALEO, VEMA, VILLAR, WOKING, ZIMMERMANN manufacturers
| Manufacturer | Reference numbers |
|---|---|
| ABE | C3W005ABE |
| A.B.S. | .16657 |
| ACDelco | AC2519D |
| AP | 24689E |
| ASHUKI | 195-958A |
| ATE | 24.0124-0128.1 |
| AUTOMEGA | 3061503017D0C |
| BARUM | BAR24128 |
| BENDIX | 562080B |
| BORG & BECK | BBD4135 |
| BOSCH | 0986478846 |
| BRECO | BS8278 |
| BREMBO | 09.7131.14 |
| BSG | BSG90-210-005 |
| CAR | 142.760, HPD760 |
| CASALS | 55434 |
| CIFAM | 800-507 |
| COMLINE | ADC1421V |
| DELPHI | BG3417 |
| DENCKERMANN | B130076 |
| DJ AUTO | BD1503 |
| E.T.F. | 19-3015 |
| EUROBRAKE | 5815204768 |
| FARCOM | 231195 |
| FEBI BILSTEIN | 14040 |
| FERODO | DDF1010C-1 |
| FIRST LINE | FBD1090 |
| FLENNOR | FB110064-C |
| FREMAX | BD-3015 |
| fri.tech. | DF531 |
| FTE | BS4732, BS4732H |
| GIRLING | 6028091 |
| GRAF | DF29507 |
| G.U.D | GDB124128 |
| HANS PRIES | 107691 |
| HELLA | 8DD355105581, 8DD355105592, 8DD355105-591 |
| HELLA PAGID | 8DD355105591, 8DD355105581, 53958PRO, 8DD355105592 |
| ICER | 78BD3015 |
| JP GROUP | 615350004ALT, 1163104500, 1163104509 |
| JURID | 562080J |
| KAGER | 37-0385 |
| KAMOKA | 1032020 |
| KAWE | 655110 |
| LEMFÖRDER | 2221702 |
| LPR | V2371V |
| MAGNETI MARELLI | 360406050200 |
| MAPCO | 15860 |
| METELLI | 23-0507 |
| METZGER | 24689E, 6551.10 |
| MEYLE | 1155211038, 1155211038/PD |
| MINTEX | MDC1047 |
| NATIONAL | NBD933 |
| NK | 204768 |
| OPEN PARTS | BDRS1843.25, BDA1843.20, BDR1843.20 |
| OPTIMAL | BS-5510 |
| PAGID | 53958, 539858PRO |
| PEX | 14.0645 |
| PILENGA | V853 |
| PROTECHNIC | PRD2173 |
| QUINTON HAZELL | HP57727, BDC4732 |
| RAMEDER | T0620062 |
| REMSA | 6551.10 |
| ROADHOUSE | 6551.10 |
| ROULUNDS BRAKING | D2519 |
| sbs | 1815204768 |
| SIMER | D2185 |
| SWAG | 30914040 |
| TEMPLIN | 01.04.06.112071 |
| TEXTAR | 92083800, 92083803, 92083805 |
| TRISCAN | 812029144C, 812029144 |
| TRUCKTEC AUTOMOTIVE | 07.35.052 |
| TRUSTING | DF531 |
| TRW | DF2809 |
| VAICO | V10-80041 |
| VALEO | 186682 |
| VEMA | 98579 |
| VILLAR | 628.1789 |
| WOKING | D6551.10 |
| ZIMMERMANN | 600.3212.50, 600.3212.00, 600.3212.52 |
Vehicle fitment / ZIMMERMANN 600.3212.20 (600321220) Brake Disc compatibility
This product fits the following models: VW EURO CARAVELLE IV, VW EURO IV, VW TRANER CARAVELLEIV, VW TRANER CARAVELLE IV, VW TRANER IV, VW TRANERIV, VW TRANER MULTI IV, VW TRANER T4, etc. See all vehicles this product (ZIMMERMANN 600.3212.20 (600321220)) fits below to verify fitment for your vehicle.| Make | Model | Variant | Period | Engine | Drive | Body Style |
|---|---|---|---|---|---|---|
| VW | EURO CARAVELLE IV 70XB 70XC 7DB 7DW 7DK | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | EURO IV 70XA | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR6 | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo |
| VW | TRANER CARAVELLEIV 70XB 70XC 7DB 7DW | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER CARAVELLE IV 70XB 70XC 7DB 7DW 7D | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER IV 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
| VW | TRANERIV 70XA 70XD | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 2.8 VR6 | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo With flatbed/undercarriage |
| VW | TRANER MULTI IV 70XB 70XC 7DB 7DW 7DK | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/09 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | Passenger Van / Wagon / Minibus |
| VW | TRANER T4 70XA 70XB 70XC 7DB 7DW 7DK 70XD | 1.9 D 1.9 TD 2.0 2.4 D 2.4 D Syncro 2.5 2.5 Syncro 2.5 TDI 2.5 TDI Syncro 2.8 2.8 VR 6 2.8 VR6 2.8 VR6 Syncro | 1990/07 - 2003/04 | 1X 60 hp 44 kW 1.9 L Diesel 1X 60 hp 44 kW 1.9 L Diesel 1X 61 hp 45 kW 1.9 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AAB 78 hp 57 kW 2.4 L Diesel AJA 75 hp 55 kW 2.4 L Diesel AAC 84 hp 62 kW 2 L Petrol AAF 110 hp 81 kW 2.5 L Petrol ACU 110 hp 81 kW 2.5 L Petrol AEN 110 hp 81 kW 2.5 L Petrol AET 115 hp 85 kW 2.5 L Petrol AEU 110 hp 81 kW 2.5 L Petrol APL 115 hp 85 kW 2.5 L Petrol AVT 115 hp 85 kW 2.5 L Petrol ABL 68 hp 50 kW 1.9 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AHY 151 hp 111 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AXG 151 hp 111 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AJT 88 hp 65 kW 2.5 L Diesel AUF 102 hp 75 kW 2.5 L Diesel AYC 102 hp 75 kW 2.5 L Diesel AYY 88 hp 65 kW 2.5 L Diesel ACV 102 hp 75 kW 2.5 L Diesel AXL 102 hp 75 kW 2.5 L Diesel AES 140 hp 103 kW 2.8 L Petrol AES 140 hp 103 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol AMV 204 hp 150 kW 2.8 L Petrol | AWD / 4WD Front wheel | LCV / Van / Cargo Passenger Van / Wagon / Minibus With flatbed/undercarriage |
