ZIMMERMANN 600.3229.20 (600322920) Brake Disc

ZIMMERMANN part 600.3229.20 (600322920) Brake Disc

ZIMMERMANN 600.3229.20 (600322920) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 600.3229.20 (600322920)

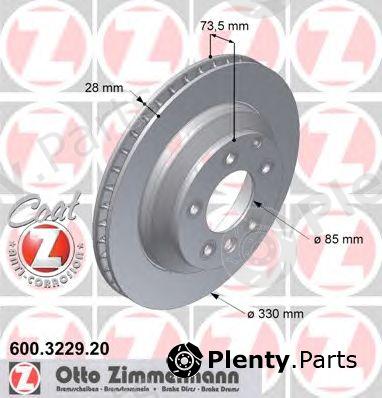

Сharacteristics:
  • Brake Disc Type: Internally Vented
  • Machining: High-carbon
  • Surface: Coated
  • Outer diameter [mm]: 330
  • Thickness [mm]: 28
  • Minimum thickness [mm]: 26
  • Height [mm]: 73,5
  • Hole Arrangement / Number: 7/5
  • Weight [kg]: 8,6
  • Bolt Hole Circle Ø 1 [mm]: 130
  • Hub Bore Ø [mm]: 85

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)600.3229.20 (600322920)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for PORSCHE, VAG vehicles

OE manufacturerOEM reference numbers
PORSCHE95535240130, 95535240131, 7L6615601D/95535240130
VAG7L6615601J, 7L6615601D, 7L8615601C

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 600.3229.20 (600322920) Brake Disc offered by ABE, A.B.S., AP, ATE, AUTOMEGA, BENDIX, BLUE PRINT, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BREMSI, CAR, CIFAM, DELPHI, DENCKERMANN, E.T.F., FARCOM, FEBI BILSTEIN, FERODO, FOMAR, FREMAX, fri.tech., FTE, GIRLING, GRAF, G.U.D, HANS PRIES, HELLA, HELLA PAGID, HP, ICER, JURID, KAGER, KAMOKA, KAWE, KRAFT, LEMFÖRDER, LPR, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, NATIONAL, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, PEX, PILENGA, PROTECHNIC, QUINTON HAZELL, R BRAKE, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, SASIC, sbs, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUCKTEC AUTOMOTIVE, TRUSTING, TRW, VAICO, WAGNER LOCKHEED, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC4W016ABE
A.B.S.17502S, 17502
AP25136V
ATE24.0128-0149.1
AUTOMEGA3061506017L8C
BENDIX562393B, 562393BC
BLUE PRINTADV184332
BORG & BECKBBD5131
BOSCH0986479S20, 0986479095
Brake ENGINEERINGDI956231
BRECOBV8745
BREMBO09.A056.11
BREMSIDBB580V
CARHPD1018, 142.1018
CIFAM800-883C
DELPHIBG3775
DENCKERMANNB130624
E.T.F.19-0021
FARCOM231272
FEBI BILSTEIN28157
FERODODDF15801, DDF1580C, DDF1580, DDF1580C1
FOMARFO4021
FREMAXBD-3328
fri.tech.DF561, BD0561
FTEBS5372B, BS5372, BS5372HB
GIRLING6044875
GRAFDF29883C
G.U.DGDB128149
HANS PRIES111290
HELLA8DD355109-821, 8DD355121111, 8DD355109811, 8DD355109822
HELLA PAGID8DD355109821, 54220PRO, 8DD355109822, 8DD355109811, 8DD355121111
HPHP58215, 58215
ICER78BD33282
JURID562393JC, 562325J, 562393J
KAGER37-1177
KAMOKA1033160
KAWE697110, 38548
KRAFT6050560
LEMFÖRDER30492
LPRP2000V
MAXGEAR191833
METELLI23-0883C
METZGER25136V, 6110434
MEYLE1155231105, 1155231105/PD
MINTEXMDC1612
NATIONALNBD1235
NK2047106
OPEN PARTSBDRS2195.25, BDR2195.20
OPTIMALBS8096C, BS8096
PAGID54420, 54220
PATRONPBD4487
PEX14.0787
PILENGAV903
PROTECHNICPRD6171
QUINTON HAZELLBDC5372, HP58215
R BRAKE78RBD23328
REMSA6971.10
ROADHOUSE6971.10
ROTINGERRT20208HP, RT20208HPT5, RT20208T5, RT20208
ROULUNDS BRAKINGWD01249
SASIC6106089
sbs18152047106
SWAG30928157
TEMPLIN0311030280, 0311030285
TEXTAR92122010, 92122005, 92122000, 92122003
TRISCAN812029181, 812029181C
TRUCKTEC AUTOMOTIVE0735189
TRUSTINGDF561
TRWDF4487S, DF4487
VAICOV10-80006
WAGNER LOCKHEEDWGR15801
WOKINGD6971, 10, D6971
ZIMMERMANN600.3229.50, 600.3229.00, 600.3229.52

Vehicle fitment / ZIMMERMANN 600.3229.20 (600322920) Brake Disc compatibility

This product fits the following models: AUDI Q7, PORSCHE CAYENNE, VW TOUAREG, etc. See all vehicles this product (ZIMMERMANN 600.3229.20 (600322920)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
AUDIQ7
4L
3.0 TDI
3.0 TFSI
3.6 FSI
4.2 FSI
4.2 TDI
6.0 TDI
2006/03 - 2015/08BAR 350 hp 257 kW 4.2 L Petrol
BHK 280 hp 206 kW 3.6 L Petrol
BTR 326 hp 240 kW 4.2 L Diesel
CCFA 340 hp 250 kW 4.2 L Diesel
CCFC 340 hp 250 kW 4.2 L Diesel
BUG 233 hp 171 kW 3 L Diesel
BUN 211 hp 155 kW 3 L Diesel
CASA 240 hp 176 kW 3 L Diesel
CASB 211 hp 155 kW 3 L Diesel
CATA 224 hp 165 kW 3 L Diesel
CCMA 240 hp 176 kW 3 L Diesel
CJGA 240 hp 176 kW 3 L Diesel
CJGC 204 hp 150 kW 3 L Diesel
CJGD 245 hp 180 kW 3 L Diesel
CJMA 204 hp 150 kW 3 L Diesel
CLZB 245 hp 180 kW 3 L Diesel
CNRB 240 hp 176 kW 3 L Diesel
CRCA 245 hp 180 kW 3 L Diesel
CCGA 500 hp 368 kW 6 L Diesel
CJTB 333 hp 245 kW 3 L Petrol
CJTC 272 hp 200 kW 3 L Petrol
CJWB 333 hp 245 kW 3 L Petrol
CJWC 272 hp 200 kW 3 L Petrol
CJWE 280 hp 206 kW 3 L Petrol
CNAA 333 hp 245 kW 3 L Petrol
CTWA 333 hp 245 kW 3 L Petrol
CTWB 280 hp 206 kW 3 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
PORSCHECAYENNE
92A
9PA
955
3.0 Diesel
3.0 S E-Hybrid
3.0 TDI
3.2
3.6
3.6 GTS
3.6 S
4.2 S Diesel
4.8 GTS
4.8 S
4.8 Turbo
4.8 Turbo S
GTS 4.8
S
S 4.5
S 4.8
Turbo 4.5
Turbo S
Turbo S 4.5
Turbo S 4.8
2002/09 - 521 hp 383 kW 4.5 L Petrol
M48.50S 500 hp 368 kW 4.5 L Petrol
M02.2Y 250 hp 184 kW 3.2 L Petrol
M05.9D 240 hp 176 kW 3 L Diesel
M05.9E 239 hp 176 kW 3 L Diesel
MCN.RB 239 hp 176 kW 3 L Diesel
MCR.C 245 hp 180 kW 3 L Diesel
MCR.CA 245 hp 180 kW 3 L Diesel
MCR.CB 211 hp 155 kW 3 L Diesel
MCV.VA 262 hp 193 kW 3 L Diesel
MCV.VB 250 hp 184 kW 3 L Diesel
MCV.VC 211 hp 155 kW 3 L Diesel
M06.EC 333 hp 245 kW 3 L Hybrid
M06.EC 416 hp 306 kW 3 L Hybrid
MCG.E 333 hp 245 kW 3 L Hybrid
MCG.E 416 hp 306 kW 3 L Hybrid
MCG.EA 333 hp 245 kW 3 L Hybrid
MCG.EA 416 hp 306 kW 3 L Hybrid
MCG.FA 333 hp 245 kW 3 L Hybrid
MCG.FA 416 hp 306 kW 3 L Hybrid
M48.00 340 hp 250 kW 4.5 L Petrol
M48.01 385 hp 283 kW 4.8 L Petrol
M48.01 405 hp 298 kW 4.8 L Petrol
M48.02 400 hp 294 kW 4.8 L Petrol
M48.02 420 hp 309 kW 4.8 L Petrol
M48.50 450 hp 331 kW 4.5 L Petrol
M48.51 500 hp 368 kW 4.8 L Petrol
M48.51 500 hp 368 kW 4.8 L Petrol
M48.51 540 hp 397 kW 4.8 L Petrol
M48.51 550 hp 404 kW 4.8 L Petrol
M48.52 500 hp 368 kW 4.8 L Petrol
M48.52 540 hp 397 kW 4.8 L Petrol
MCF.TB 520 hp 382 kW 4.8 L Petrol
M48.52 550 hp 405 kW 4.8 L Petrol
MCY.XA 570 hp 419 kW 4.8 L Petrol
M55.01 290 hp 213 kW 3.6 L Petrol
M55.02 300 hp 220 kW 3.6 L Petrol
MCE.YA 300 hp 220 kW 3.6 L Petrol
MCU.DB 382 hp 281 kW 4.2 L Diesel
MCU.DC 385 hp 283 kW 4.2 L Diesel
MCU.RA 420 hp 309 kW 3.6 L Petrol
MCX.ZA 440 hp 324 kW 3.6 L Petrol
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
VWTOUAREG
7LA
7L6
7L7
7P5
2.5 R5 TDI
3.0 TDI
3.0 V6 TDI
3.0 V6 TSI
3.0 V6 TSI Hybrid
3.2 V6
3.6 V6 FSI
4.2 V8
4.2 V8 FSI
4.2 V8 TDI
5.0 R50 TDI
5.0 V10 TDI
6.0 W12
2002/10 - AXQ 310 hp 228 kW 4.2 L Petrol
BHX 310 hp 228 kW 4.2 L Petrol
AYH 313 hp 230 kW 5 L Diesel
BLE 313 hp 230 kW 5 L Diesel
BWF 313 hp 230 kW 5 L Diesel
AZZ 220 hp 162 kW 3.2 L Petrol
BAA 220 hp 162 kW 3.2 L Petrol
BKJ 220 hp 162 kW 3.2 L Petrol
BMV 220 hp 162 kW 3.2 L Petrol
BMV 241 hp 177 kW 3.2 L Petrol
BMX 220 hp 162 kW 3.2 L Petrol
BRJ 220 hp 162 kW 3.2 L Petrol
BAC 174 hp 128 kW 2.5 L Diesel
BLK 163 hp 120 kW 2.5 L Diesel
BPD 163 hp 120 kW 2.5 L Diesel
BPE 174 hp 128 kW 2.5 L Diesel
BAR 350 hp 257 kW 4.2 L Petrol
BHK 280 hp 206 kW 3.6 L Petrol
BHL 280 hp 206 kW 3.6 L Petrol
BJN 450 hp 331 kW 6 L Petrol
CFRA 450 hp 331 kW 6 L Petrol
BKS 225 hp 165 kW 3 L Diesel
CASA 240 hp 176 kW 3 L Diesel
CASC 240 hp 176 kW 3 L Diesel
CATA 225 hp 165 kW 3 L Diesel
BUN 211 hp 155 kW 3 L Diesel
CASB 211 hp 155 kW 3 L Diesel
CASA 240 hp 176 kW 3 L Diesel
CASD 204 hp 150 kW 3 L Diesel
CATA 225 hp 165 kW 3 L Diesel
CJGD 245 hp 180 kW 3 L Diesel
CJMA 204 hp 150 kW 3 L Diesel
CNRB 240 hp 176 kW 3 L Diesel
CRCA 245 hp 180 kW 3 L Diesel
CVVA 262 hp 193 kW 3 L Diesel
CVWA 204 hp 150 kW 3 L Diesel
CBWA 350 hp 257 kW 5 L Diesel
CGEA 333 hp 245 kW 3 L Hybrid
CGFA 333 hp 245 kW 3 L Hybrid
CGNA 360 hp 265 kW 4.2 L Petrol
CGRA 280 hp 206 kW 3.6 L Petrol
CMTA 249 hp 183 kW 3.6 L Petrol
CJTA 290 hp 213 kW 3 L Petrol
CKDA 340 hp 250 kW 4.2 L Diesel
AWD / 4WD
Full-size SUV / Compact SUV / Mid-size SUV / Compact SUV / Crossover SUV
