ZIMMERMANN 610.1195.20 (610119520) Brake Disc

ZIMMERMANN part 610.1195.20 (610119520) Brake Disc

ZIMMERMANN 610.1195.20 (610119520) Brake Disc

by ZIMMERMANN

Manufacturer Part Number: 610.1195.20 (610119520)

Сharacteristics:

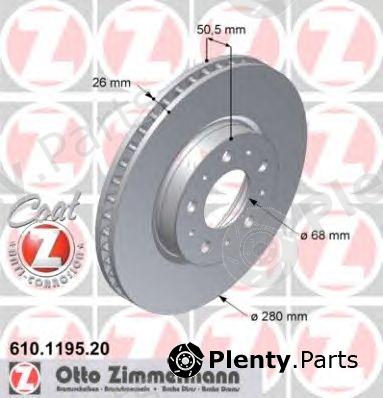

  • Brake Disc Type: Internally Vented
  • Surface: Coated
  • Outer diameter [mm]: 280
  • Thickness [mm]: 26
  • Minimum thickness [mm]: 23
  • Height [mm]: 50,5
  • Hole Arrangement / Number: 10/5
  • Weight [kg]: 6,4
  • Bolt Hole Circle Ø 1 [mm]: 108
  • Hub Bore Ø [mm]: 68

Product Details

BrandZIMMERMANN
ZIMMERMANN article (MPN)610.1195.20 (610119520)
Vehicle subsystemBrake System

Original (OEM) part numbers

Suitable for VOLVO vehicles

OE manufacturerOEM reference numbers
VOLVO2717882, 31262092, 271788, 9140759, 91407593, 271788.0

Aftermarket cross reference / interchange guide

The aftermarket competitive interchanges for ZIMMERMANN 610.1195.20 (610119520) Brake Disc offered by ABE, A.B.S., ACDelco, AP, ATE, BARUM, BENDIX, BORG & BECK, BOSCH, Brake ENGINEERING, BRECO, BREMBO, BSF, CIFAM, DELPHI, DENCKERMANN, FARCOM, FEBI BILSTEIN, FERODO, FIRST LINE, FOMAR, FREMAX, fri.tech., FTE, GIRLING, HELLA, HELLA PAGID, HP, JURID, KAGER, KAWE, KRAFT, LEMFÖRDER, LPR, LUCAS ELECTRICAL, MAGNETI MARELLI, MAPCO, MAXGEAR, METELLI, METZGER, MEYLE, MINTEX, NK, OPEN PARTS, OPTIMAL, PAGID, PATRON, QUINTON HAZELL, RAMEDER, REMSA, ROADHOUSE, ROTINGER, ROULUNDS BRAKING, sbs, ScanTech, SWAG, TEMPLIN, TEXTAR, TRISCAN, TRUSTING, TRW, VALEO, VEMA, WOKING, ZIMMERMANN manufacturers

ManufacturerReference numbers
ABEC3V017ABE
A.B.S.16236
ACDelcoAC2305D
APX24453, 24453E, 24453V
ATE24.0126-0102.1
BARUMBAR26102
BENDIX561866BC, 561866, 561866B
BORG & BECKBBD5051
BOSCH0986478603
Brake ENGINEERINGDI955514
BRECOBV8144, BS8144
BREMBO09.5568.24, 09.5568.20, 09.5568.76, 09.5568.21
BSF11345V
CIFAM800375
DELPHIBG2841
DENCKERMANNB130067
FARCOM231167
FEBI BILSTEIN11454
FERODODDF605
FIRST LINEFBD588
FOMARFO2305
FREMAXBD-1788
fri.tech.DF395, BD0395
FTEBS3912B, BS3912
GIRLING6026711
HELLA8DD355103681, 8DD355103682, 8DD355103671
HELLA PAGID8DD355103671, 8DD355103681, 8DD355103682
HPHP57562
JURID561866JC, 561866J
KAGER37-0041
KAWEBDRS1614.25, 641010
KRAFT6046380
LEMFÖRDER1909601
LPRV1283V
LUCAS ELECTRICALDF2671
MAGNETI MARELLI360406051400
MAPCO15964
MAXGEAR190761, 190761MAX
METELLI230375
METZGER24453V
MEYLE5155215012, 5155215012/PD
MINTEXMDC825
NK204832, 344832
OPEN PARTSBDA1614.20, BDRS1614.25, BDR1614.20
OPTIMALBS8058, BS8058C, BS4100C, BS-4100
PAGID54018PRO, 54018
PATRONPBD2671
QUINTON HAZELLBDC3912, HP57562
RAMEDERT0620513
REMSA6410.10
ROADHOUSE6410.10
ROTINGERRT2234, RT2234T5
ROULUNDS BRAKINGD2305
sbs1815204832, 1815344832
ScanTech20.460
SWAG55911454
TEMPLIN0311029625, 01.07.42.107637, 0311029620
TEXTAR92066705, 92066703, 98200066701, 92066700
TRISCAN812027119, 812027119C
TRUSTINGDF395
TRWDF2671
VALEO186526
VEMA98599
WOKINGD6410.10
ZIMMERMANN610.1195.00, 610.1195.52, 610.1195.75, 610.1195.70, 610.1195.50

Vehicle fitment / ZIMMERMANN 610.1195.20 (610119520) Brake Disc compatibility

This product fits the following models: VOLVO 850, VOLVO C70 I, VOLVO S70, VOLVO S90, VOLVO V70  , VOLVO V70 I, VOLVO V90, etc. See all vehicles this product (ZIMMERMANN 610.1195.20 (610119520)) fits below to verify fitment for your vehicle.
MakeModelVariantPeriodEngineDriveBody Style
VOLVO850
LS
LW
2.0
2.0 Turbo
2.3
2.3 T5
2.3 T5 R
2.3 T5-R
2.3 Turbo R
2.4 GLE
2.5
2.5 AWD
2.5 TDI
1991/06 - 1997/10B5202S 126 hp 93 kW 2 L Petrol
B5204F 143 hp 105 kW 2 L Petrol
B5204FT 210 hp 155 kW 2 L Petrol
B5204T 210 hp 155 kW 2 L Petrol
B5204T2 179 hp 132 kW 2 L Petrol
B5204FT 210 hp 155 kW 2 L Petrol
B5204T 210 hp 155 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5234FS 144 hp 106 kW 2.3 L Petrol
B5234FT 226 hp 166 kW 2.3 L Petrol
B5234T2 239 hp 176 kW 2.3 L Petrol
B5234T4 250 hp 184 kW 2.3 L Petrol
B5234T5 241 hp 177 kW 2.3 L Petrol
B5252 140 hp 103 kW 2.5 L Petrol
B5252FS 144 hp 106 kW 2.5 L Petrol
B5254S 170 hp 125 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.5 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
Sedan / Saloon
VOLVOC70 I
2.0
2.0 T
2.3 T-5
2.3 T5
2.4 T
2.5
2.5 T
1997/03 - 2005/10B5204T2 180 hp 132 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5234T3 239 hp 176 kW 2.3 L Petrol
B5234T9 245 hp 180 kW 2.3 L Petrol
B5234T3 240 hp 176 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
B5254S 170 hp 125 kW 2.5 L Petrol
B5244T 193 hp 142 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.5 L Petrol
B5244T7 200 hp 147 kW 2.4 L Petrol
B5254S 170 hp 125 kW 2.5 L Petrol
Front wheel
Convertible / cabrio
Coupe / Sports car / Grand tourer / Speedster / Roadster
VOLVOS70
LS
2.0
2.0 Turbo
2.3 T-5
2.3 Turbo
2.4
2.4 Turbo
2.5
2.5 Bifuel
2.5 TDI
1997/01 - 2000/11B5202FS 126 hp 93 kW 2 L Petrol
B5202S 126 hp 93 kW 2 L Petrol
B5204F 143 hp 105 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5204T 210 hp 155 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5234T3 239 hp 176 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5254S 170 hp 125 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5252FS 144 hp 106 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
GB5252S 144 hp 106 kW 2.5 L Petrol
Front wheel
Sedan / Saloon
VOLVOS90
2.9
1997/01 - 1998/05B6304G 204 hp 150 kW 2.9 L Petrol
B6304S2 180 hp 132 kW 2.9 L Petrol
Rear wheel
Sedan / Saloon
VOLVOV70
LV
2.0
2.0 Turbo
2.0 Turbo AWD
2.3 AWD
2.3 T-5
2.3 T-5 AWD
2.3 T AWD
2.3 Turbo
2.4
2.4 Bifuel
2.4 Turbo
2.5
2.5 AWD
2.5 Bifuel
2.5 TDI
2.5 Turbo AWD
1997/01 - 2000/05B5202S 126 hp 93 kW 2 L Petrol
B5204F 143 hp 105 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5204T 211 hp 155 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5234T4 250 hp 184 kW 2.3 L Petrol
B5234T3 239 hp 176 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5234T8 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5254S 170 hp 125 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.5 L Petrol
B5244T2 265 hp 195 kW 2.5 L Petrol
B5252FS 144 hp 106 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
GB5252S 144 hp 106 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV70 I
LV
2.0
2.0 Turbo
2.0 Turbo AWD
2.3 AWD
2.3 T-5
2.3 T-5 AWD
2.3 T AWD
2.3 Turbo
2.4
2.4 Bifuel
2.4 Turbo
2.5
2.5 AWD
2.5 Bifuel
2.5 TDI
2.5 Turbo AWD
1997/01 - 2000/05B5202S 126 hp 93 kW 2 L Petrol
B5204F 143 hp 105 kW 2 L Petrol
B5204T2 180 hp 132 kW 2 L Petrol
B5204T4 163 hp 120 kW 2 L Petrol
B5204T 211 hp 155 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5204T3 226 hp 166 kW 2 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5234FT+ 250 hp 184 kW 2.3 L Petrol
B5234T4 250 hp 184 kW 2.3 L Petrol
B5234T3 239 hp 176 kW 2.3 L Petrol
B5234T7 265 hp 195 kW 2.3 L Petrol
B5234T8 265 hp 195 kW 2.3 L Petrol
B5244S 170 hp 125 kW 2.4 L Petrol
B5244S2 140 hp 103 kW 2.4 L Petrol
B5244SG2 140 hp 103 kW 2.4 L Petrol
B5254S 170 hp 125 kW 2.4 L Petrol
B5244SG 140 hp 103 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.4 L Petrol
B5254T 193 hp 142 kW 2.4 L Petrol
B5244T 193 hp 142 kW 2.5 L Petrol
B5254T 193 hp 142 kW 2.5 L Petrol
B5244T2 265 hp 195 kW 2.5 L Petrol
B5252FS 144 hp 106 kW 2.5 L Petrol
B5254S 165 hp 121 kW 2.5 L Petrol
D5252T 140 hp 103 kW 2.5 L Diesel
GB5252S 144 hp 106 kW 2.5 L Petrol
AWD / 4WD
Front wheel
Estate / Turnier / Vario / Wagon
VOLVOV90
2.9
1997/01 - 1998/12B6304G 204 hp 150 kW 2.9 L Petrol
B6304S2 180 hp 132 kW 2.9 L Petrol
Rear wheel
Estate / Turnier / Vario / Wagon
