Product Details for EAA-121247 by EAA
Aftermarket EAA Starter with part number EAA-121247 in the Electrics category. Designed for Ahlmann, Atlas Copco, Bomag, Case Ih, Deutz, Deutz-Fahr, Faun, Fuchs, KHD, Vögele, Volvo, Zeppelin vehicles. Find the best offer for EAA EAA-121247 from our trusted suppliers.
For detailed technical data, visit Product specifications.
EAA EAA-121247 is also known by the following OEM part numbers: 2300088A, 2913163700, 05726191, 1480963, 01163626, etc.
See original manufacturer codes in OEM part numbers.
Aftermarket EAA EAA-121247 Starter is also cross-referenced with the following part numbers: AINDE CGB-21005, BOSCH 0001231005, CASCO CST10657AS, DA SILVA 020578, DELCO REMY DRT1000, etc.
Find equivalent parts from other brands in Cross reference.
Product Specifications & Characteristics
These are the detailed technical specifications, characteristics and key features of EAA EAA-121247, including material, dimensions, and design details.
|
Characteristic
Technical parameter
|
Value
Specification
|
|---|---|
| Voltage [V] | 24 |
| Number of Teeth | 9 |
| Rated Power [kW] | 4 |
| Quality | NUEVO |
| Length [mm] | 316,5 |
| Bore Ø [mm] | 10,5 |
| Position/Degree | links |
| Clamp | 30 |
| Clamp | 50 |
| Rotation Direction | Clockwise rotation |
| Flange Ø [mm] | 89 |
| Bore Ø 2 [mm] | 10,5 |
| Bore Ø 3 [mm] | 10,5 |
| Starter Type | Self-supporting |
| Number of mounting bores | 3 |
| Connecting Angle [Degree] | 51 |
| Pinion Rest Position [mm] | 28 |
| Jaw opening angle measurement [Degree] | 45 |
| Fastening hole angle measurement [Degree] | 51 |
Original (OE/OEM) part numbers
These are the original OE/OEM numbers equivalent to EAA EAA-121247.
|
Manufacturer
Vehicle brand
|
OEM Part Numbers
Original equipment manufacturer codes
|
|---|---|
| AHLMANN | 2300088A, 4188195A |
| ATLAS COPCO | 2913163700, 2913184900 |
| BOMAG | 05726191 |
| CASE IH | 1480963 |
| DEUTZ | 01163626, 01179586 |
| DEUTZ-FAHR | 030465730, 1182931, 1183122, 1183239 |
| FAUN | 4159015 |
| FUCHS | 5411656432 |
| KHD | 1183716 |
| VÖGELE | 2132583 |
| VOLVO | 2041237, 22175635 |
| ZEPPELIN | CU7932 |
Cross References & Interchange Guide
Here you can find parts from other brands equivalent to EAA EAA-121247, offering the same fit and function as the original component. Aftermarket interchanges for EAA EAA-121247 are offered by Ainde, Bosch, Casco, Da Silva, Delco Remy.
|
Producer
Aftermarket brand
|
Cross Numbers
Compatible part numbers
|
|---|---|
| AINDE | CGB-21005, CGB-53007 |
| BOSCH | 0001231005, 0001231028, 0001263008, 0001364100, 0001364301, 0986012700, 0986021000 |
| CASCO | CST10657AS, CST10657GS |
| DA SILVA | 020578 |
| DELCO REMY | DRT1000 |
| HELLA | 8EA726149-001, CS1514 |
| LUCAS ELECTRICAL | LRS01936 |

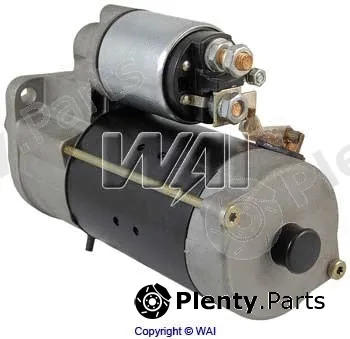

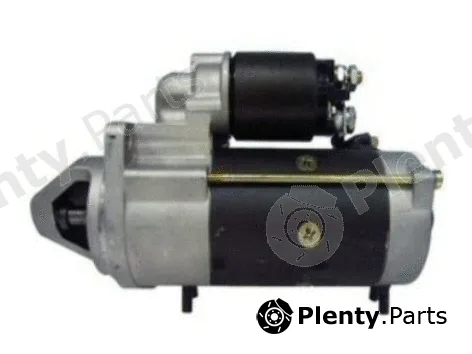

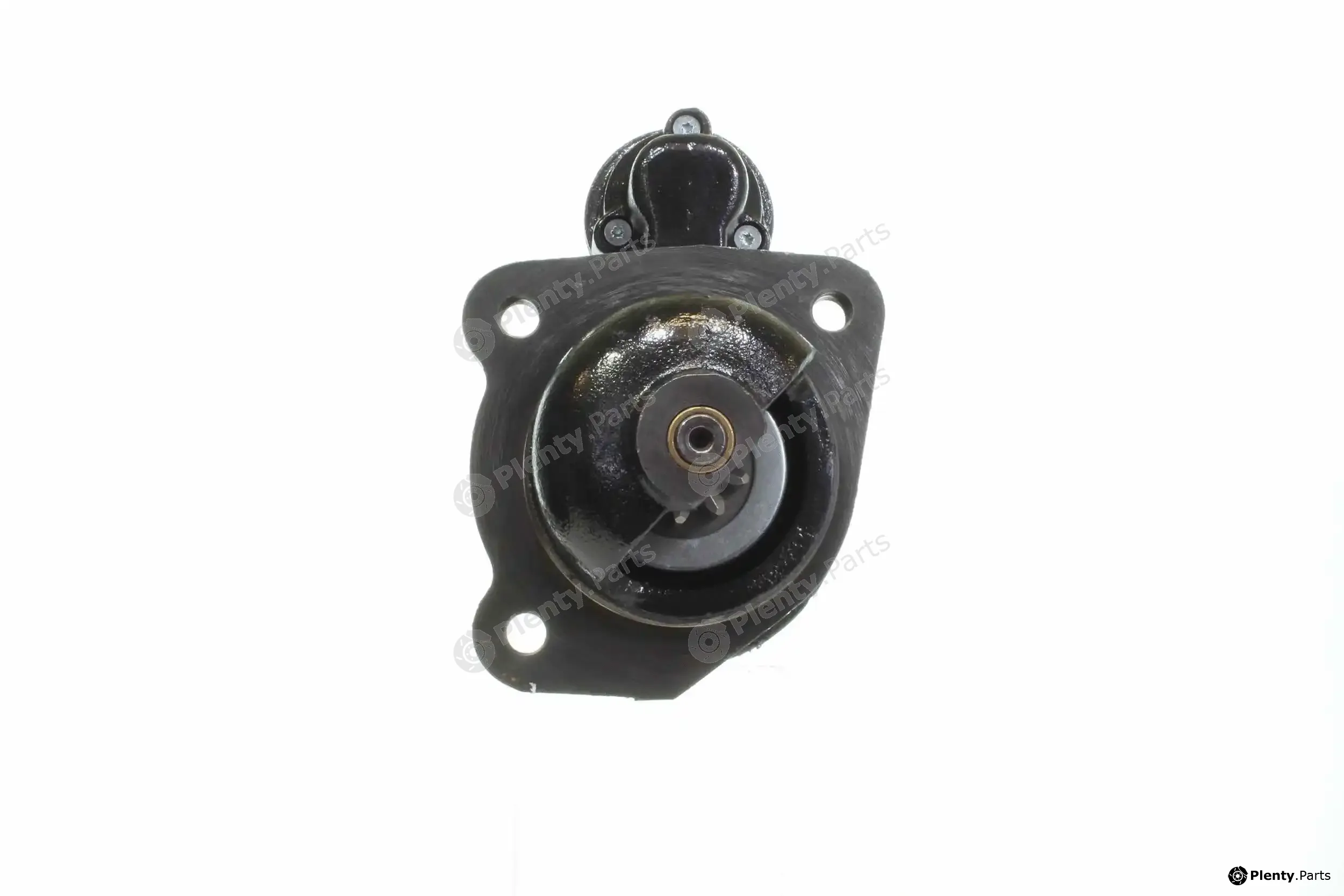

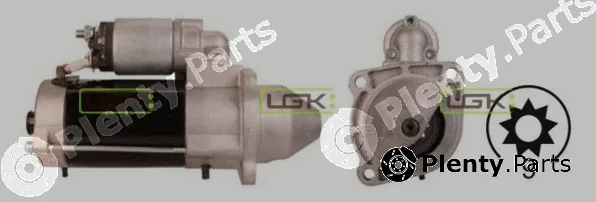

Alternative parts
Alternative part numbers are provided for reference only. Verify fitment against the manufacturer catalog before ordering.
