Aftermarket EAA EAA-121909 Starter
Offers from our partners
As an Amazon Associate I earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on at the time of purchase will apply to the purchase of this product. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM . THIS CONTENT IS PROVIDED ‘AS IS’ AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Product Details for EAA-121909 by EAA
Aftermarket EAA Starter with part number EAA-121909 in the Electrics category. Designed for Fiat vehicles. Find the best offer for EAA EAA-121909 from our trusted suppliers.
For detailed technical data, visit Product specifications.
EAA EAA-121909 is also known by the following OEM part numbers: 46451529, 46748349, 46748350, 46800152, 46808152, etc.
See original manufacturer codes in OEM part numbers.
This product fits the following models: FIAT BRAVA (182_), FIAT BRAVO I (182_), FIAT DOBLO (119_, 223_), FIAT DOBLO (223_), FIAT MAREA (185_), FIAT MAREA Weekend (185_), FIAT MULTIPLA (186_), FIAT STILO (192_), FIAT STILO Multi Wagon (192_), LANCIA LYBRA (839_), etc.
Fitment data is a guide, not a guarantee. Compare with the part you’re replacing, or ask your mechanic, before ordering.
Will it fit your vehicle? Check all compatible models in Vehicle compatibility.
Aftermarket EAA EAA-121909 Starter is also cross-referenced with the following part numbers: AINDE CGB-53104, BOSCH 0001107091, CASCO CST15179AS, CEVAM 3013, DA SILVA 020201, etc.
Find equivalent parts from other brands in Cross reference.
Product Specifications & Characteristics
These are the detailed technical specifications, characteristics and key features of EAA EAA-121909, including material, dimensions, and design details.
|
Characteristic
Technical parameter
|
Value
Specification
|
|---|---|
| Voltage [V] | 12 |
| Number of Teeth | 10 |
| Number of Teeth | 9 |
| Rated Power [kW] | 1,1 |
| Quality | NUEVO |
| Length [mm] | 220 |
| Bore Ø [mm] | 11 |
| Position/Degree | links |
| Clamp | 30 |
| Clamp | 50 |
| Rotation Direction | Clockwise rotation |
| Flange Ø [mm] | 64 |
| Number of threaded holes | 2 |
| Thread Size 1 | M8 |
| Thread Size 2 | M8 |
| Starter Type | Self-supporting |
| Number of mounting bores | 1 |
| Connecting Angle [Degree] | 55 |
| Pinion Rest Position [mm] | 11,5 |
| Jaw opening angle measurement [Degree] | 35 |
| Fastening hole angle measurement [Degree] | 55 |
Original (OE/OEM) part numbers
These are the original OE/OEM numbers equivalent to EAA EAA-121909.
|
Manufacturer
Vehicle brand
|
OEM Part Numbers
Original equipment manufacturer codes
|
|---|---|
| FIAT | 46451529, 46748349, 46748350, 46800152, 46808152, 46816971, 46821681, 468350093, 46835093, 46835094, 51776205, 51832956, 51868757, 7773763 |
Cross References & Interchange Guide
Here you can find parts from other brands equivalent to EAA EAA-121909, offering the same fit and function as the original component. Aftermarket interchanges for EAA EAA-121909 are offered by Ainde, Bosch, Casco, Cevam, Da Silva.
|
Producer
Aftermarket brand
|
Cross Numbers
Compatible part numbers
|
|---|---|
| AINDE | CGB-53104 |
| BOSCH | 0001107091, 0001107097, 0001107109, 0001107110, 0986018880, 0986022111 |
| CASCO | CST15179AS, CST15179GS |
| CEVAM | 3013 |
| DA SILVA | 020201 |
| DELCO REMY | DRS3587 |
| HELLA | 8EA011610-291, 8EA012527-391, 8EA737820-001, 8EA737905-001, 8EA738258-261, CS1345 |
| LUCAS ELECTRICAL | LRS01590 |
| VALEO | 438145, 455975, 458163, 458505, D6RA137, D6RA138, D6RA187, D6RA188 |
Vehicle Fitment for EAA EAA-121909
This section lists all vehicle models compatible with EAA EAA-121909, helping you verify if the part fits your specific make and model. Suitable for FIAT BRAVA (182_), FIAT BRAVO I (182_), FIAT DOBLO (119_, 223_), FIAT DOBLO (223_), FIAT MAREA (185_), FIAT MAREA Weekend (185_), FIAT MULTIPLA (186_), FIAT STILO (192_), FIAT STILO Multi Wagon (192_), LANCIA LYBRA (839_) and other models listed below.
Cars & Light Commercial Vehicles:
1.6 16V (182.BB)
Front-Wheel Drive
Hatchback
1.6, 1.6 16V (182.AB)
Front-Wheel Drive
Hatchback
1.6 16V (223AXD1A), 1.6 Natural Power
Front-Wheel Drive
MPV
1.6 16V (223ZXD1A), 1.6 Natural Power
Front-Wheel Drive
Box Body/MPV
1.6, 1.6 100 16V, 1.6 100 16V Bipower
Front-Wheel Drive
Saloon
1.6, 1.6 100 16V
Front-Wheel Drive
Estate
1.6 (186AXC1A, 186BMC1A, 186BXC1A), 1.6 100 16V (186AXA1A), 1.6 16V (186AGB1A), 1.6 16V Bipower (186AMB1A), 1.6 16V Bipower (186AXC1A), 1.6 16V Blupower (186AMA1A)
Front-Wheel Drive
MPV
1.6 16V (192_XB1A)
Front-Wheel Drive
Hatchback
1.6 16V
Front-Wheel Drive
Estate
1.6, 1.6 16V (839AXA1A)
Front-Wheel Drive
Saloon
1.6 (839.BXF1A), 1.6 16V (839BXA1A)
Front-Wheel Drive
Estate

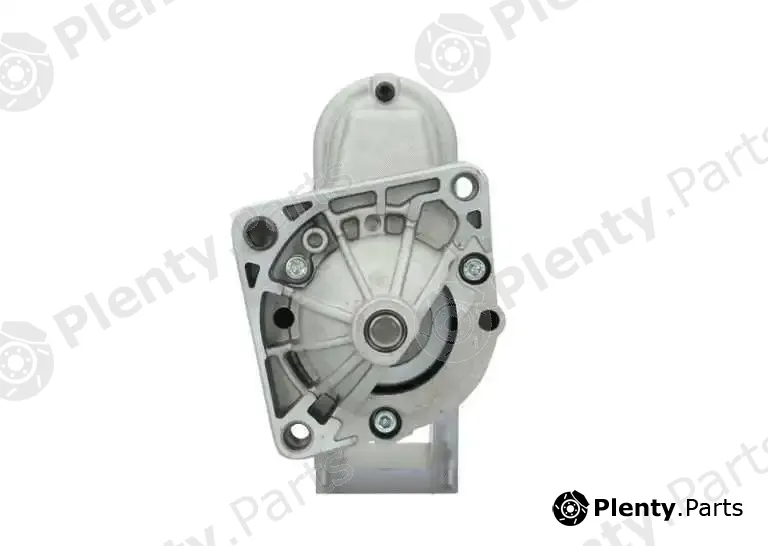

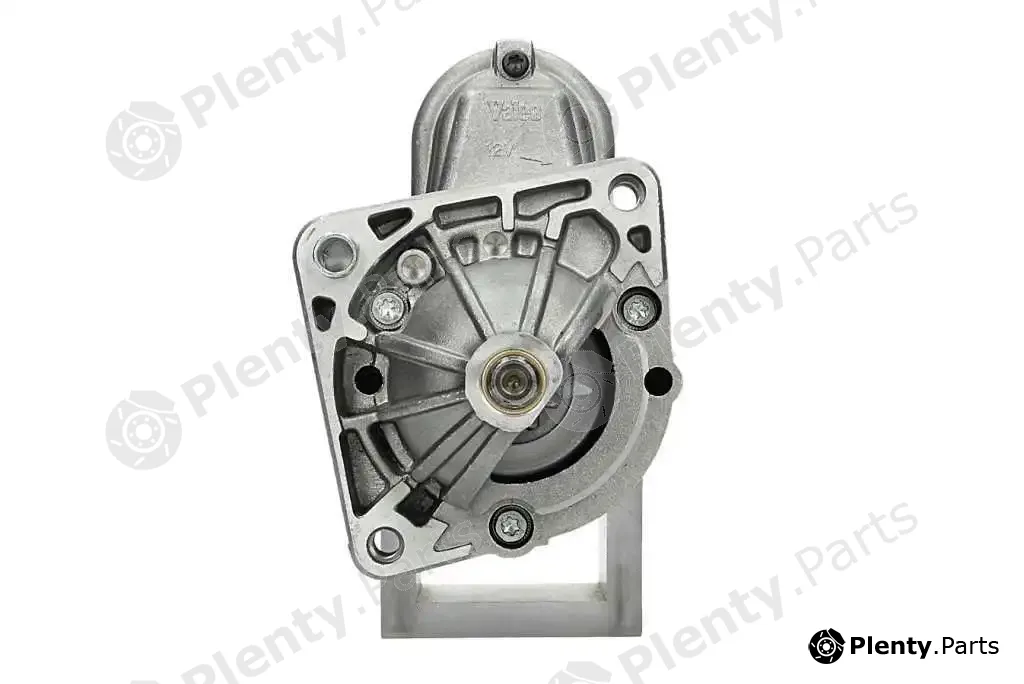

Alternative parts
Alternative part numbers are provided for reference only. Verify fitment against the manufacturer catalog before ordering.
