Aftermarket EAA EAA-122446 Starter
Offers from our partners
As an Amazon Associate I earn from qualifying purchases. Product prices and availability are accurate as of the date/time indicated and are subject to change. Any price and availability information displayed on at the time of purchase will apply to the purchase of this product. CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM . THIS CONTENT IS PROVIDED ‘AS IS’ AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Product Details for EAA-122446 by EAA
Aftermarket EAA Starter with part number EAA-122446 in the Electrics category. Designed for VAG vehicles. Find the best offer for EAA EAA-122446 from our trusted suppliers.
For detailed technical data, visit Product specifications.
EAA EAA-122446 is also known by the following OEM part numbers: 02Z911024Q, 02Z911024QX, etc.
See original manufacturer codes in OEM part numbers.
This product fits the following models: AUDI A3 (8V1, 8VK), AUDI A3 (8V7, 8VE), AUDI A3 Limousine (8VS, 8VM), AUDI A3 Sportback (8VA, 8VF), SEAT LEON (5F1), SEAT LEON SC (5F5), SEAT LEON ST (5F8), SKODA OCTAVIA III (5E3, NL3, NR3), SKODA OCTAVIA III Combi (5E5, 5E6), VW GOLF SPORTSVAN VII (AM1, AN1), etc.
Fitment data is a guide, not a guarantee. Compare with the part you’re replacing, or ask your mechanic, before ordering.
Will it fit your vehicle? Check all compatible models in Vehicle compatibility.
Aftermarket EAA EAA-122446 Starter is also cross-referenced with the following part numbers: BOSCH 0001179502, CASCO CST10477GS, CEVAM 3396, etc.
Find equivalent parts from other brands in Cross reference.

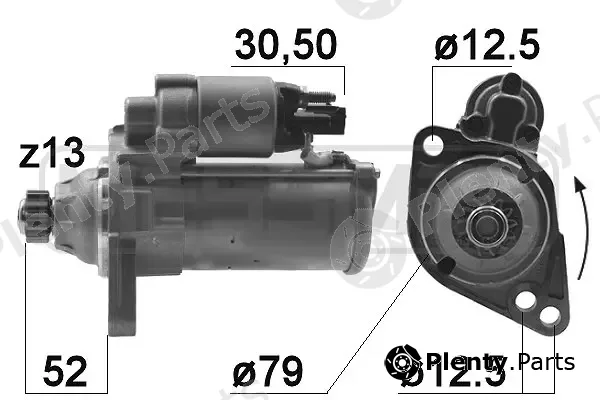

Product Specifications & Characteristics
These are the detailed technical specifications, characteristics and key features of EAA EAA-122446, including material, dimensions, and design details.
|
Characteristic
Technical parameter
|
Value
Specification
|
|---|---|
| Voltage [V] | 12 |
| Number of Teeth | 13 |
| Rated Power [kW] | 1,1 |
| Quality | NUEVO |
| Length [mm] | 230 |
| Bore Ø [mm] | 12,5 |
| Position/Degree | links |
| Clamp | 30 |
| Clamp | 50 |
| Rotation Direction | Anticlockwise rotation |
| Flange Ø [mm] | 79 |
| Bore Ø 2 [mm] | 12,5 |
| Bore Ø 3 [mm] | 12,5 |
| Starter Type | Floating pinion |
| Number of mounting bores | 3 |
| Connecting Angle [Degree] | 46 |
| Pinion Rest Position [mm] | 52,1 |
| Fastening hole angle measurement [Degree] | 46 |
Original (OE/OEM) part numbers
These are the original OE/OEM numbers equivalent to EAA EAA-122446.
|
Manufacturer
Vehicle brand
|
OEM Part Numbers
Original equipment manufacturer codes
|
|---|---|
| VAG | 02Z911024Q, 02Z911024QX |
Cross References & Interchange Guide
Here you can find parts from other brands equivalent to EAA EAA-122446, offering the same fit and function as the original component. Aftermarket interchanges for EAA EAA-122446 are offered by Bosch, Casco, Cevam.
|
Producer
Aftermarket brand
|
Cross Numbers
Compatible part numbers
|
|---|---|
| BOSCH | 0001179502, 0001179514, 0986026130 |
| CASCO | CST10477GS |
| CEVAM | 3396 |
Vehicle Fitment for EAA EAA-122446
This section lists all vehicle models compatible with EAA EAA-122446, helping you verify if the part fits your specific make and model. Suitable for AUDI A3 (8V1, 8VK), AUDI A3 (8V7, 8VE), AUDI A3 Limousine (8VS, 8VM), AUDI A3 Sportback (8VA, 8VF), SEAT LEON (5F1), SEAT LEON SC (5F5), SEAT LEON ST (5F8), SKODA OCTAVIA III (5E3, NL3, NR3), SKODA OCTAVIA III Combi (5E5, 5E6), VW GOLF SPORTSVAN VII (AM1, AN1) and other models listed below.
Cars & Light Commercial Vehicles:
1.4 TFSI, 1.4 TSI, 1.8 TFSI, 1.8 TFSI quattro
All-wheel Drive, Front-Wheel Drive
Hatchback
1.4 TFSI, 1.4 TSI, 1.8 TFSI, 1.8 TFSI quattro
All-wheel Drive, Front-Wheel Drive
Convertible
1.4 TFSI, 1.4 TSI, 1.8 TFSI, 1.8 TFSI quattro
All-wheel Drive, Front-Wheel Drive
Saloon
1.4 TFSI, 1.4 TFSI g-tron, 1.4 TSI, 1.8 TFSI, 1.8 TFSI quattro
All-wheel Drive, Front-Wheel Drive
Hatchback
1.4 TGI, 1.4 TSI
Front-Wheel Drive
Hatchback
1.4 TSI
Front-Wheel Drive
Coupe
1.4 TGI, 1.4 TSI
Front-Wheel Drive
Estate
1.4 TSI, 1.4 TSI G-TEC, 1.8 TSI
Front-Wheel Drive
Hatchback
1.4 TSI, 1.4 TSI G-TEC, 1.8 TSI, 1.8 TSI 4x4
All-wheel Drive, Front-Wheel Drive
Estate
1.4 TSI, 1.4 TSI MultiFuel
Front-Wheel Drive
Hatchback
1.4 TGI CNG, 1.4 TSI, 1.4 TSI MultiFuel
Front-Wheel Drive
Hatchback
1.4 TGI CNG, 1.4 TSI, 1.4 TSI MultiFuel
Front-Wheel Drive
Estate
Alternative parts
Alternative part numbers are provided for reference only. Verify fitment against the manufacturer catalog before ordering.
