Product Details for K62065 by IPD
Aftermarket IPD Water Pump & Timing Belt Kit BasicPro with part number K62065 in the Engine category. Designed for Audi, VAG, VW vehicles. Find the best offer for IPD K62065 from our trusted suppliers.
For detailed technical data, visit Product specifications.
See which components this assembly is built from in Parts included.
IPD K62065 is also known by the following OEM part numbers: 074121004, 046109119E, 074121004A, 074121004F, 074121004V, etc.
See original manufacturer codes in OEM part numbers.
This product fits the following models: VW LT Mk II (2DA, 2DD, 2DH), VW LT Mk II (2DB, 2DE, 2DK), VW LT Mk II (2DC, 2DF, 2DG, 2DL, 2DM), VW TRANSPORTER / CARAVELLE Mk IV (70B, 70C, 7DB, 7DK, 70J,, VW TRANSPORTER / CARAVELLE T4 (70B, 70C, 7DB, 7DK, 70J, 70K, VW TRANSPORTER Mk IV (70A, 70H, 7DA, 7DH), VW TRANSPORTER Mk IV (70E, 70L, 70M, 7DE, 7DL,, etc.
Fitment data is a guide, not a guarantee. Compare with the part you’re replacing, or ask your mechanic, before ordering.
Will it fit your vehicle? Check all compatible models in Vehicle compatibility.
Aftermarket IPD K62065 Water Pump & Timing Belt Kit BasicPro is also cross-referenced with the following part numbers: AIRTEX WPK9274R03, BEHR HELLA SERVICE 8MP376804841, BOSCH 1987948878, BREDA LORETT KPA0066A, CONTINENTAL CTAM CT914K1, etc.
Find equivalent parts from other brands in Cross reference.
Product Specifications & Characteristics
These are the detailed technical specifications, characteristics and key features of IPD K62065, including material, dimensions, and design details.
|
Characteristic
Technical parameter
|
Value
Specification
|
|---|---|
| Number of Teeth 1 | 81 |
| Number of Teeth 2 | 122 |
| Width 1 [mm] | 21 |
| Width 2 [mm] | 26,5 |
| Pulleys contained | 3 |
| Number of belts | 2 |

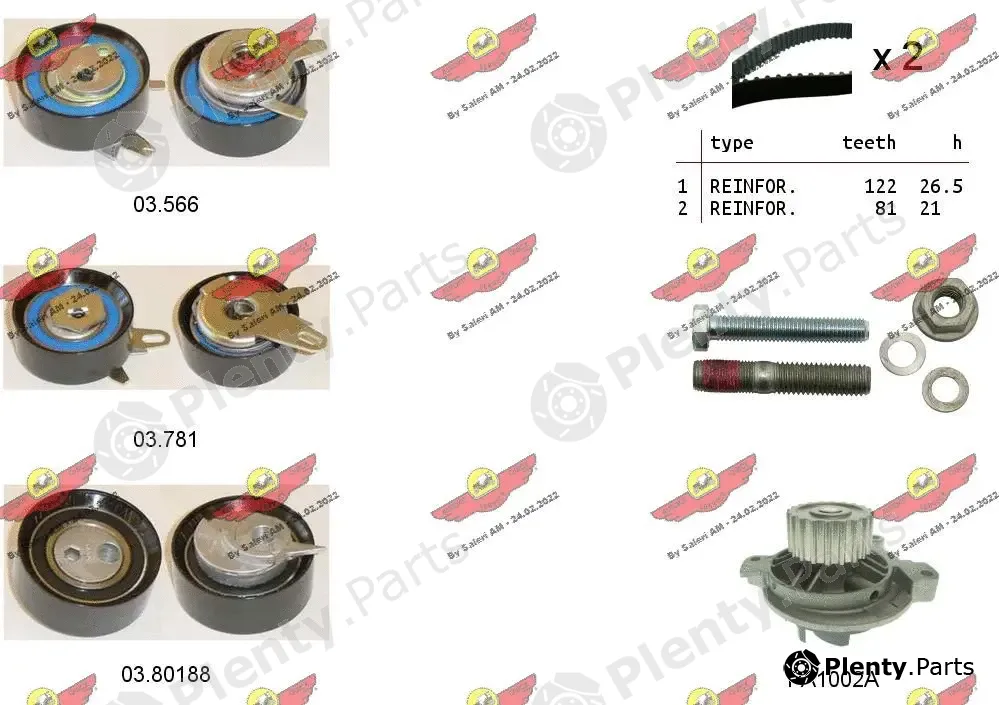

Parts included in IPD K62065
These are the components and repair kit items supplied within IPD K62065, with the quantity used per assembly.
|
Component
Brand and part number
|
Description
|
Qty
|
|
|---|---|---|---|
|

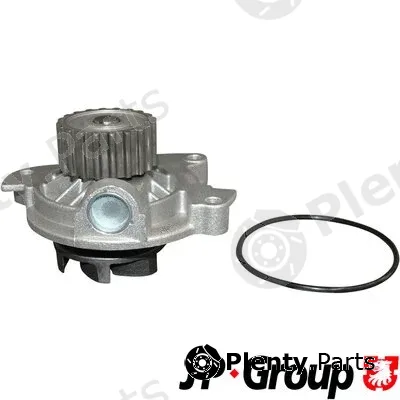

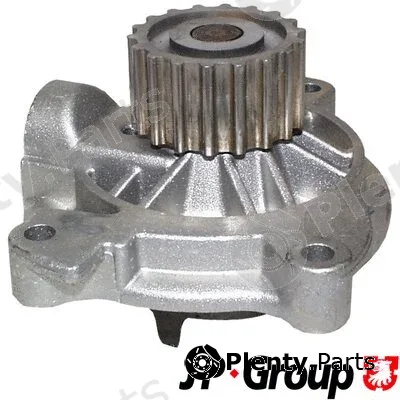

IPD P574 Water Pump, engine cooling | Water Pump, engine cooling | 1 |
|
IPD 29-0044 Timing Belt | Timing Belt | 1 |
|
IPD 29-0048 Timing Belt | Timing Belt | 1 |
|
IPD 64135 Tensioner Pulley, timing belt | Tensioner Pulley, timing belt | 1 |
|
IPD 64130 Tensioner Pulley, timing belt | Tensioner Pulley, timing belt | 1 |
|
IPD 64128 Tensioner Pulley, timing belt | Tensioner Pulley, timing belt | 1 |
Original (OE/OEM) part numbers
These are the original OE/OEM numbers equivalent to IPD K62065.
|
Manufacturer
Vehicle brand
|
OEM Part Numbers
Original equipment manufacturer codes
|
|---|---|
| AUDI | 074121004, 074121004A, 074121004F, 074121004V, 074121004X, 074121005M, 074121005N, 074121005P, 076121005, 076121005A, 74121004 |
| VAG | 074121004, 074121004A, 074121004AV, 074121004AX, 074121004BV, 074121004BX, 074121004FX, 074121004V, 074121004X, 074121005M, 074121005MX, 074121005N, 074121005NX, 074121005P, 076121005, 076121005A |
| VW | 046109119E, 074109119A, 074109119B, 074109119E, 074109119J, 074109119L, 074109119P, 074109119R, 074109243F, 074109243G, 074109243J, 074109243R, 074121004, 074121004A, 074121004F, 074121004V, 074121004X, 074121005M, 074121005N, 074121005P, 074130113E, 074130113J, 074130195B, 076121005, 076121005A, 46109119, 74121004, 74130195, 74130245 |
Cross References & Interchange Guide
Here you can find parts from other brands equivalent to IPD K62065, offering the same fit and function as the original component. Aftermarket interchanges for IPD K62065 are offered by Airtex, Behr Hella Service, Bosch, Breda Lorett, Continental Ctam.
|
Producer
Aftermarket brand
|
Cross Numbers
Compatible part numbers
|
|---|---|
| AIRTEX | WPK9274R03, WPK9274R06 |
| BEHR HELLA SERVICE | 8MP376804841 |
| BOSCH | 1987948878 |
| BREDA LORETT | KPA0066A |
| CONTINENTAL CTAM | CT914K1, CT939K2, CT939WP2 |
| DAYCO | KTBWP3430, KTBWP4730, KTBWP4890 |
| FEBI BILSTEIN | 45121 |
| FLENNOR | FP44212V1 |
| GATES | KP15323XS |
| GK | K980189A |
| GRAF | KP7581 |
| HELLA | 8MP376804841 |
| HUTCHINSON | KH261 |
| INA | 530048310, 530048330 |
| INTERBRAKE | 5300483, 530048300, 530048320, 530048330 |
| JP GROUP | 1114107819 |
| KWP | KW7581 |
| LuK | 5300483100 |
| MAPCO | 41834 |
| METELLI | 30-07581 |
| NK | 10947137 |
| OPTIBELT | KT1214W1 |
| QUINTON HAZELL | QBK651, QBPK6500, QBPK8070, QBPK8560 |
| RUVILLE | 55446701, 5544672, 55446721, 65426 |
| SALERI | K1PA1002 |
| Saleri SIL | K1PA1002A |
| SKF | VKMA01270, VKMC01270, VKMC01271 |
| SNR | KD45738 |
| TRISCAN | 8647100002 |
Vehicle Fitment for IPD K62065
This section lists all vehicle models compatible with IPD K62065, helping you verify if the part fits your specific make and model. Suitable for VW LT Mk II (2DA, 2DD, 2DH), VW LT Mk II (2DB, 2DE, 2DK), VW LT Mk II (2DC, 2DF, 2DG, 2DL, 2DM), VW TRANSPORTER / CARAVELLE Mk IV (70B, 70C, 7DB, 7DK, 70J,, VW TRANSPORTER / CARAVELLE T4 (70B, 70C, 7DB, 7DK, 70J, 70K, VW TRANSPORTER Mk IV (70A, 70H, 7DA, 7DH), VW TRANSPORTER Mk IV (70E, 70L, 70M, 7DE, 7DL, and other models listed below.
Cars & Light Commercial Vehicles:
2.5 TDI
Rear-Wheel Drive
Van
2.5 TDI
Rear-Wheel Drive
Bus
2.5 TDI
Rear-Wheel Drive
Platform/Chassis
2.5 TDI, 2.5 TDI Syncro
All-wheel Drive, Front-Wheel Drive
Bus
2.5 TDI, 2.5 TDI Syncro
All-wheel Drive, Front-Wheel Drive
Bus
2.5 TDI, 2.5 TDI Syncro
All-wheel Drive, Front-Wheel Drive
Van
2.5 TDI, 2.5 TDI Syncro
All-wheel Drive, Front-Wheel Drive
Platform/Chassis
Alternative parts
Alternative part numbers are provided for reference only. Verify fitment against the manufacturer catalog before ordering.
